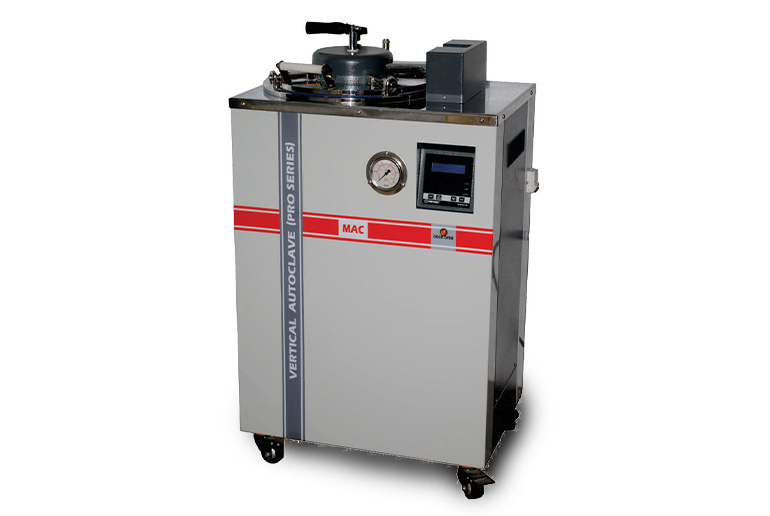

VERTICAL AUTOCLAVE FULLY AUTOMATIC "SPEC" MSW-101 (PROFAD)
Fully Automatic Microprocessor controlled model with auto purging and exhaust with cycle end alert.
Features
- Backed with 56 years of service to science and our expertise in steam pressure sterilization autoclaves. Our Top Loading PRO Series Autoclaves are the ideal companion for the modern microbiologists and institutes, pharma companies, hospitals etc.
- Leakproof silicon gasket
- Over pressure safety
- Safe and sturdy chamber manufactured from Stainless Steel (SS-304)
- Low water level cut off for safety of heating elements.
- Independent safety for over temperature protection.
- Saves Power bills by upto 30%
- Heat cured epoxy coating on steel exterior OR Stainless Steel exterior (as ordered).
- Electrical on/off safety switch
- Easy draining of chamber
- Easy portability and placement and movement
Usage Portability
- Single lever locking of lid for faster operations.
- Heater and pressure interlock for lid lock safety.
- Effortless lifting of lid with assisted spring push back support
- Accurate temperature control with user level flexibility. Display process and set values simultaneously.
- Microprocessor Based Fully Automatic Fuzzy Logic Control System with Alphanumeric Digital backlit LCD display.
- Automatic Steam purging and exhaust
- Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically with alarm for cycle end.
- With LCD display data logger with REAL TIME, DATE, TIME etc directly on PC (SOFTWARE OPTIONAL) or direct on DOT MATRIX PRINTER.
| Technical Specifications & Ordering Informations | |||||
| Model (CRC) | #AVF-43(PROFAD-CRC) | #AVF-64(PROFAD-CRC) | #AVF-91(PROFAD-CRC) | #AVF-135(PROFAD-CRC) | #AVF-210(PROFAD-CRC) |
|---|---|---|---|---|---|
| Model (SS) | #AVF-43(PROFAD-SS) | #AVF-64(PROFAD-SS) | #AVF-91(PROFAD-SS) | #AVF-135(PROFAD-SS) | #AVF-210(PROFAD-SS) |
| Inner Dimensions (Dia x Height) | 300x500mm | 350x550mm | 400x600mm | 450x710mm | 550x760mm |
| Capacity | 43 Ltrs | 64 Ltrs | 91 Ltrs | 135 Ltrs | 210 Ltrs |
| Heater Load | 3.0 KW | 3.0 KW | 4.0 KW | 4.0 KW | 5.0 KW |
