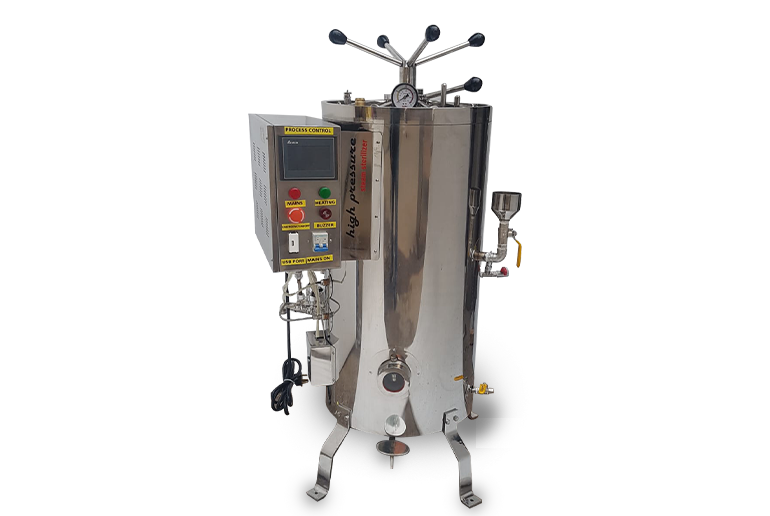

VERTICAL HIGH PRESSURE HIGH SPEED VACCUM PULSING STEAM STERILIZER - TRIPLE WALLED “SPEC” MSW-102(HS)
This is a small description
Applications
- “SPEC” Triple Walled High Pressure Automatic Digital Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.
- These are automatic models requiring tighter control of temperature and sterilizing time, thus eliminating any chances of under or over exposure of media /samples with respect to temperature and hold time.
- Triple Walled High Pressure Vertical Autoclaves are used where Dry Sterilization is required.
FEATURES
- Sterilizing Chamber, Steam Jacket and outer chamber are made of stainless steel (SS-304 grade).
- Lid made of thick machined Stainless Steel Plate.
- Radial locking lid ensures user safety and safe locking.
- Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual Exhaust Valve, Vaccum Breaker-cum-Purge Valve as a safety device and audio/visual electronic water level indicator on panel.
- Drain Valve facilitates easy cleaning of the chamber.
- Moulded jointless silicon rubber gasket.
- All internal joints are argon arc welded.
- Mounting Legs, lifting rod and pedal mechanisms are made of stainless steel(SS-202).
- Control panel box of Stainless Steel (SS-202)
Control Panel And Switchgears
- µProcessor based Controller with time and temperature settable by user.
- Operating range from 15 to 30 psi pressure (adjustable).
- Dual Pt-100 sensor, enabling precise and accurate monitoring.
- Miniature Circuit Breaker for MAINS On/Off plus safety of control panel.
- Industrial grade energy efficient heaters reduces power bills drastically.
- Communication Port : As per our CSR policy we always encourage our customers to keep data in Digital Format for safe, secure, easy to access and environment friendly manner. With our RS-485 communication port you may save data to your existing computer and taken prints of the selected data instead of taking and managing prints of the whole data.
- To work on 430/440 Volts, 3 Phase AC supply.
| Technical Specifications & Ordering Informations | ||
| INPUT VOLTAGE | #VSS-40 (HS) | #VSS-78 (HS) |
|---|---|---|
| Inner Dimensions (Dia x Height) | 300×500mm | 400×600mm |
| Capacity | 40 ltrs | 78 ltrs |
| Heater Load | 2.0 KW | 4.0 KW |
| Gasket | Made of Jointless Silicon Rubber | |
| Controller | Digital Temperature Indicator-cum-Controller | |
| Display | Digital LED display with set value (SV) and process value(PV) | |
| COM PORT | With RS-485 COM PORT for logging data onto your PC for safe and secure records in digital format and taking print as and when required vis-a-vis, date, time and operating parameters | |
| Timer (Auto Time Control) & Buzzer | Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically. | |
| Buzzer (Cycle End) | Yes | |
| Buzzer (Low Water Cut Off) | Yes | |
| MOC (Steam Generator) | Stainless Steel (SS-304) | |
| MOC (Sterilizing Chamber) | Stainless Steel (SS-304) | |
| MOC (External Wall) | Stainless Steel (SS-304) | |
| MOC (Top Lid) | Thick machined stainless steel plate (SS-304) | |
| Sterilizing Pressure | Upto 15 Psi/30 Psi | |
| Operating Pressure | From 15psi to 30psi (adjustable) | |
| Pressure Gauge | For pressure indication | |
| Exhaust of Pressure | Thru solenoid valve | |
| Power Supply | 430/440 V AC, Three Phase AC Supply | |
Options
- Spare Silicon Gasket
- Flange Heater
